Welcome to Frida's Build Log
Note: images are in reverse chronological order-ish.

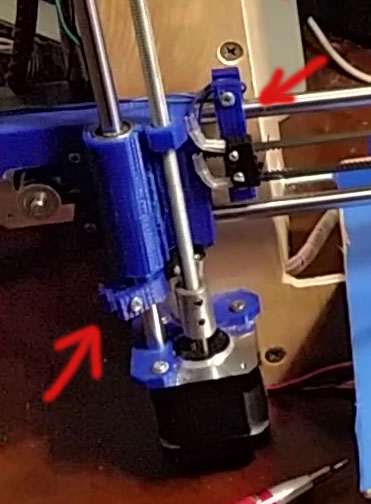

End Stops
Here you can see the x and Z end stops installed
First run!
Frida's new Prusa i3 printing its first object, a calibration cube.

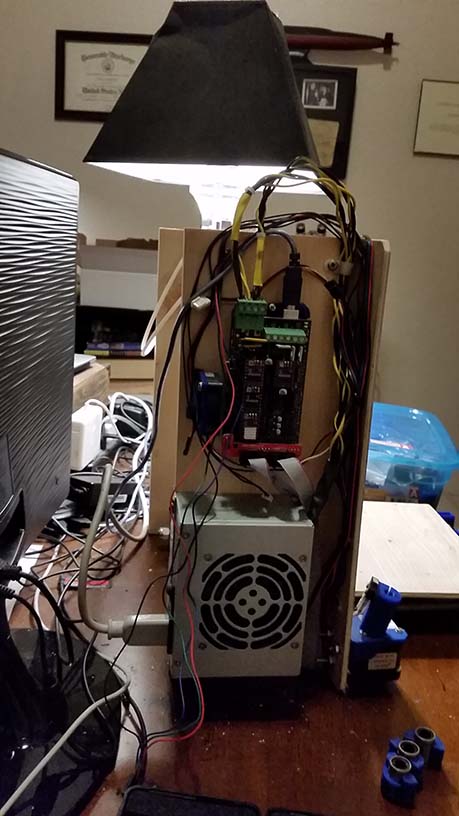

Electronics
Electronics are in place...

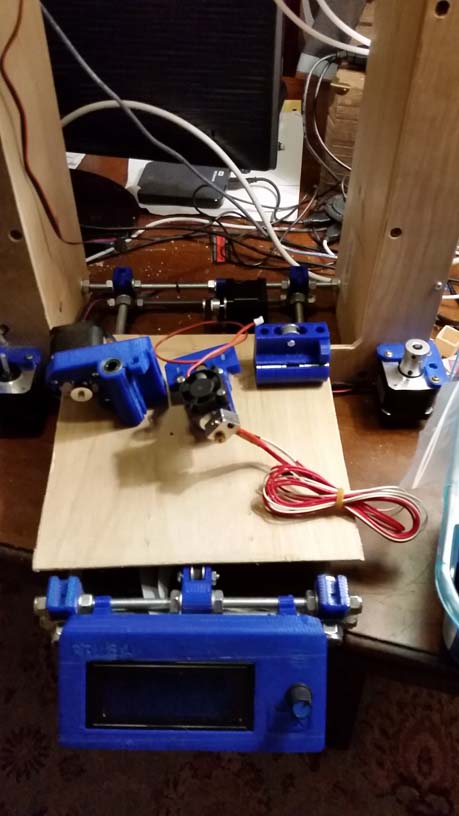

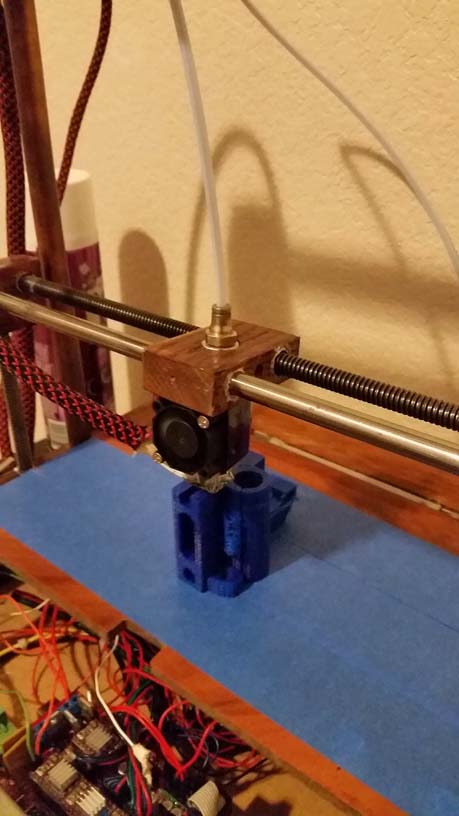

X carriage Components
The X carriage is ready to go when the rods arrive. Where are those darn linear rods I ordered?

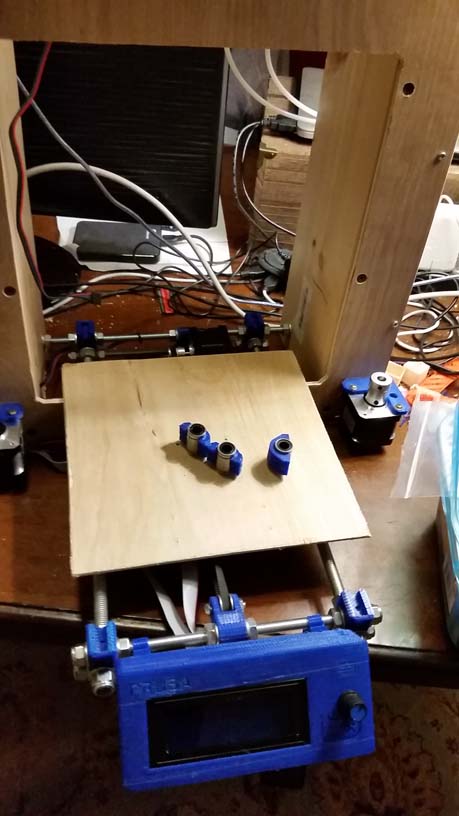

Y carriage
The Y carriage with 3 bearings ready to go on. Linear rods are still on order from China.

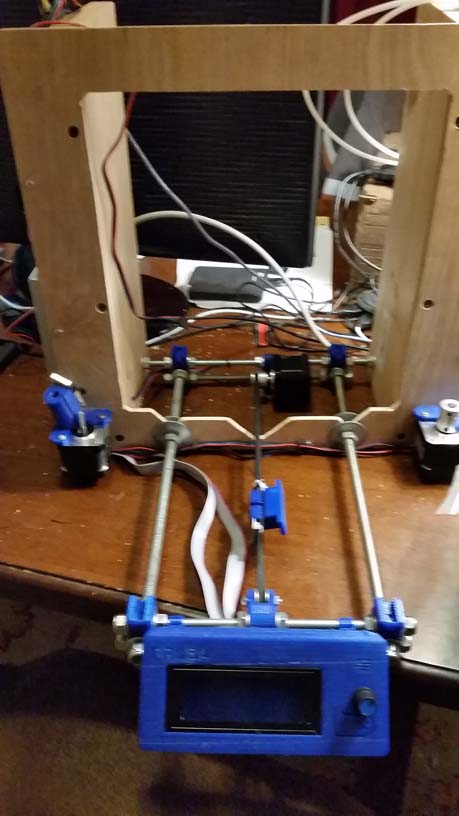

Framed
Assembled Frame with motors and smart display

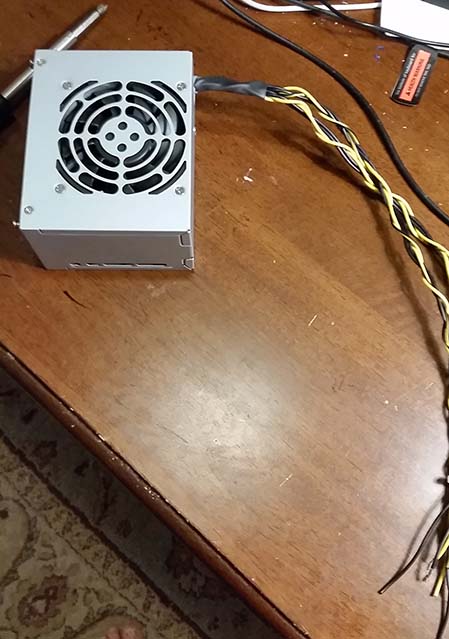

Power Supply
The power supply with excess wires removes and cables braided and heat shrink tubing-ed

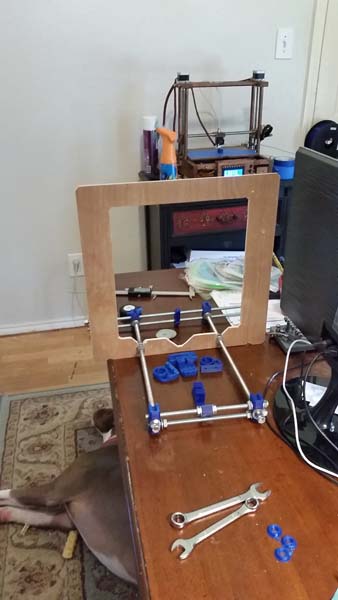

Y/Z Assembly
Here is the Y stage loosely assembled on the frame to check the fit.
Printing one of the X Axis ends
Here is the Y stage loosely assembled on the frame to check the fit.
A big bowl of cat
Boo was tired...
Printing one of the X Axis ends
Here is the Y stage loosely assembled on the frame to check the fit.

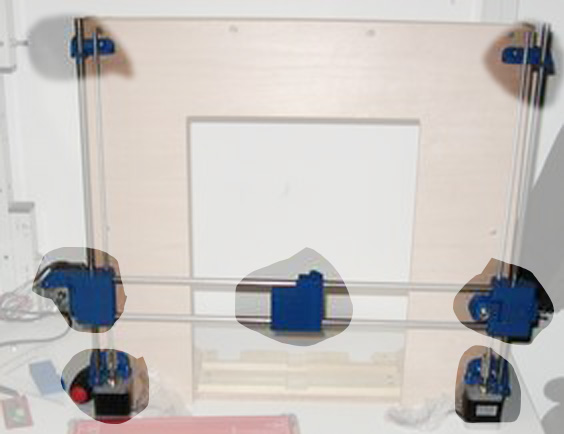

X/Z Axis
Here is a stock image of the X/Z axis.
All of the parts of the X and Z axis are printed!.

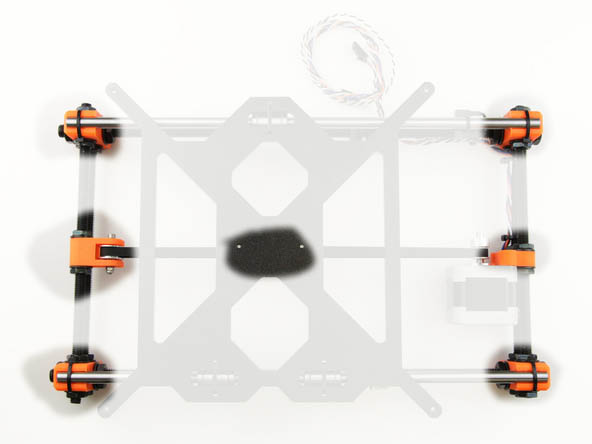

Y Axis
All of the printed parts for the Y axis are done!
